Making An Automatic Bartender: Constructing the Frame

Making An Automatic Bartender: Constructing the Frame

We set out to make Sir Mix A Bot an affordable project that can quickly come to life. Surprisingly, most of the electronics can be sourced relatively easily and off the shelf. With known microcontrollers (Arduino), wifi chips, and stepper motors – one of the most costly components to the bar itself is the frame. We would have loved an injection molded masterpiece – or a metallic frame made of the highest quality 304 Stainless and TIG welded to perfection. Unfortunately by doing so, we would have made the cost of building your own automatic bartender prohibitively expensive.

Objectives of the Automatic Bartender Frame:

We set out several design objectives for the automatic bar frame:

  • Affordable: Retail cost of the frame had to be less than $60 to make fully viable bar
  • Lightweight: Less than 4 kg, so the frame could still be hung from a wall if needed with the additional drinks.
  • No special Manufacturing Techniques: The frame had to still be viable to manufacture at low unit volumes
  • Easy to Assemble: 1-2 Tools required for Assembly at most. No special welding, switching tools, etc.
  • Low Parts Count: Less than 10 total parts. We didn’t want 9 sub assemblies
  • Fun Aesthetic: We had to be able to show some creativity. This is after all, an automatic bartender and so making the end result something pleasing to look at and entertain guests was a must.

Potential Options and alternate Materials:

Because the manufacturing had to be easy, the consideration actually came down to three primary materials for our bar tending robot:

(1) Baltic Birch Plywood Laser Cut:

Baltic Birch is an incredible material. The wood has a higher modulus of elasticity than most comparable hard plywoods (more research here) and has the added benefit of a nice finish. Unlike most plywoods, the end product can still be sanded and made to look like a final product. Furthermore, at ~6mm thickness, the wood can still be easily laser cut with no other manufacturing needed.

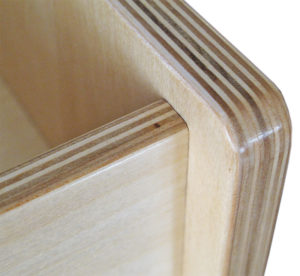

Automatic Bartender Birch

(2) T-frame Aluminum Extrusions:

In addition to the baltic birch considerations, we also examined using 2020 Aluminum channel frame. Aluminum (especially in 2020 frame) has even greater strength properties. Furthermore, we could eliminate machine work altogether with 90 degree fasteners that are readily available. Unfortunately, the material is limiting because there’s no elements of creativity (all shapes must be 90 or 45 degrees). And assembly would require many pieces for a completed frame, and might still required a plastic cut cover or wood enclosure to look presentable. And lastly – the extrusions themselves are expensive – about $1.80 per 100mm of aluminum extrusion not accounting for the joints.

(3) MDF Particle Board Laser Cut:

Lastly – we decided to attempt a frame made from MDF particle board. Although MDF lacks the strength of the other two options …. it is abundantly affordable. About 1/2 the cost of the birch frame. And although it doesn’t stain well, or present the nicest end finish without paint, it can be repainted and finished to a reasonable degree.

The Final Frame for Sir Mix a Bot:

Ultimately – our robotic bartender was made in both MDF and Baltic Birch. We have two different sized version (an 1100mm length that holds 10 beverages, or a shorter 600mm version which holds 5 beverages). Here’s the prototype frames with a few notes on WHY our design choice led us down this path.

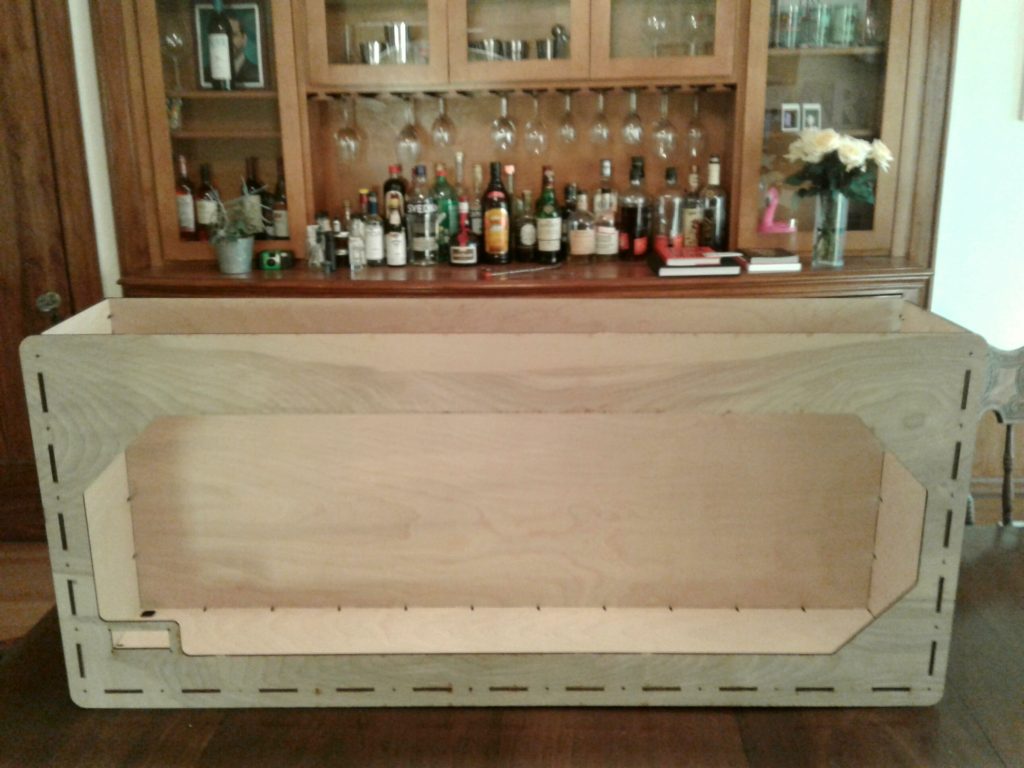

Automatic Bartender Frame Laser Cuts

We made the laser-cuts such that:

  • The Slots Self-Align the wood into place
  • Screw holds for all major subcomponents are precut and able to hold the pieces together without drilling or likelihood of dislocation
  • The external aesthetic can be cleaned and displayed too look good! We have the potential to add logos and other elements of personalization



CAD Files for Cuts:

Wanna laser-cut your own frame parts? We’ve got no problem, we’ll periodically update the CAD files here.
